GRACE 158`

Pris: 72.900.000

Informasjon

  • Pris: 72.900.000
  • Båttype: Yacht
  • 158 Fot
  • Årsmodell: 2004
  • Drivstoff: Diesel

YACHTmegleren AS offer this amazing ship for sale at 8.500.000 Euro, located in Oslo during the winter, and cruising along the Norwegian cost in the summer.

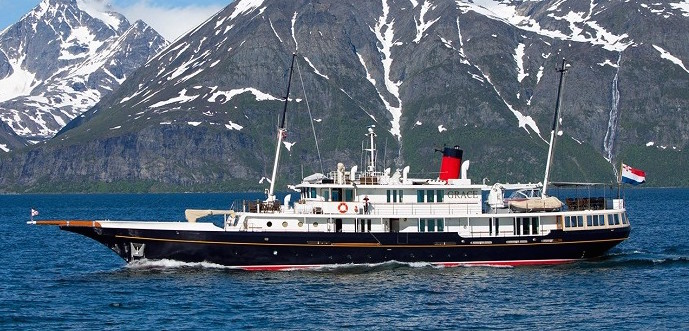

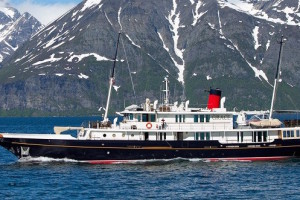

Launched in Holland in 2004 and designed in the elegant style of the early passenger vessels, the 48 metre (158′) steel and aluminium GRACE is definitely a Gentleman’s yacht.

However, there is nothing old-fashioned about this vessel! Her classic exterior lines and traditional detailing are skilfully combined with all the modern systems required for safe, economical, comfortable and efficient operation. Her hull is strengthened to Ice Class standards and its efficient hydrodynamics provide transatlantic range at low fuel cost making her eminently suitable for worldwide expeditions at both high and low latitudes.

Grace is a 48 M steel and aluminium elegant explorer vessel of classic design under Dutch flag. She is certified for unlimited commercial navigation with Ice Class. Grace accommodates 10 passengers and 7-9 crew in comfort. Her class is Netherlands Shipping Inspection & Bureau Veritas. She is commissioned in 2004 and is in ‘as new’ condition.

The hull and superstructure are smooth and fair, and almost no “cosmetic” filler has been used. Her strengthened hull, propellers and rudders allow certified operation through ice of up to 40 cm. She has all the modern electronics, technical systems and safety equipment required for safe operation, but her lines are resolutely traditional. Teak decks, bronze railings, deck fittings and lights recall the golden age of travel by sea. “Grace” aims for high quality and lasting value without being in any way ostentatious. Her timeless styling and elegance will never become outdated, even 100 years from now.

A maximum speed of 12.5knots can be reached with a range of more than 5300 nm at 10 knots.

BRIEF TECHNICAL SPECIFICATION
Type Displacement Yacht Hull No: SDS100
Year 2004 Gross Tons 353 tons
Builder Syperda, Kooiman, Ventis (Holland) Registration/Flag Netherlands
Hull Material Steel Status Commercially Registered
Ext. Designer Koster Shipping, Monaco
Classification Bureau Veritas I 3/3 (E) + Special Service Charter Yacht, Deep Sea Ice Class III, MACH.
Commercial Vessel, Unlimited Deep Sea Navigation, Unmanned Engine Room
Engine Type 2 x Cummins – KTA-19-M3 (turbo charged) – 600 hp
Length 48.35 m 158’
Beam 8.20 m 26’11’’ Max. Speed 12.5 knots
Draft 2.80 m 9’2’’ Range 5300 n miles @ 10.5 knots

SPECIFICATION
Builder Syperda, Kooiman, Ventis (Holland)
Year Delivered 2004
Build No SDS100
Classification Bureau Veritas I 3/3 (E) + Special Service Charter Yacht, Deep Sea Ice
Class III, MACH. Commercial Vessel, Unlimited Deep Sea Navigation,
Unmanned Engine Room
Yacht Type Classic Motoryacht
Sales Tax Status Commercially registered (therefore VAT not paid).

CONSTRUCTION
Hull Steel
Deck Teak
Type Displacement Yacht
Ext. Designer Koster Shipping, Monaco
Naval Architect Ginton Naval Architects, Holland
Last Refit Date 2007
Last Refit Notes Clipper bow added

DIMENSIONS
Length overall 48.35 metres 158’8’’ Feet
Length waterline 37.81 metres 124’1’’ Feet
Beam 8.2 metres 26’11’’ Feet
Draft 2.8 metres 9’2” Feet
Gross Tonnage 353 tons
Net Tonnage 105 tons
Displacement 440 tonnes 433 Tons
Fuel Tanks 41000 Litres 10831 US Gallons
Water Tanks 15000 Litres 3962 US Gallons

ACCOMMODATION
Twin Cabins 2
Double Cabins 3
Total Guest Berths 10
Number of crew cabins 5
Total Crew Berths 7/9

GENERAL ACCOMMODATION DESCRIPTION
Owners Located on the main deck level, full width double cabin with ensuite bathroom. Walk-in wardrobe
and dressing area.
Guests 2 x double guest cabins with ensuite shower rooms situated aft on the lower deck.
2 x twin guest cabins with ensuite shower rooms on the lower deck.
Crew Accommodation for Captain plus six crew (plus 2 pullman berths) in 5 cabins.

MACHINERY
Main Engines 2 Cummins KTA-19-M3 (turbo charged)
Propulsion Power 600 HP 447 kW
Engine Hours 3900 hrs (02/15)
Fuel Type Diesel
Gear Box 2 x ZF 4.97:1 with trolling option reduction gearboxes. Type BW211
Maximum Speed 12.5 knots
Economical Speed 10.5 knots
Range at Economical Speed 5300 nautical miles
Fuel Consumption at Economical Speed 85 Litres 22 US Gallons per hour.

This ship is in mint condition, present better than new, inspected of Yachtmegleren febr. 2015.

Please contact the Yachtbroker Stian Sandlie +47 92467000 for more information or if you want to see the ship. Dont hesitate to take contact if you want to do a great deal on one of the most amazing ship in the world. Perfect and ready for new adventures. Keen seller!

YACHTmegleren AS
Leangbukta Maritime Senter
Leangbukta 31 – 1392 Vettre
NORWAY

www.yachtmegleren.no

Video:

ANCILLARY MACHINERY

Air Conditioning/heating Marine Air 4 stage chilled water air conditioning.
ACV/Elco 140 kw air and radiator heating throughout.
Bow Thruster FrankenElectric 400V/60Hz – 82kw/125A
Fuel Filtration Double Racal fuel filters on tanks and main engines
Oil Filtration Facet oily water separator
Sewage System 11 x Jets toilets
Propellers 2 x 7-bladed (Ice Class)
Other Steering System: Meyer system with 2 x load sensing pumps connected to
the Main Engines
Rudder Angle Indicator: 4 x Kobelt indicators situated on the Bridge Roof,
Bridge Wings and on the Bridge

ELECTRICAL SYSTEMS
Electrical Power 400V 3-phase AC, 50Hz
230V 3-phase AC, 50Hz
24V DC
Generators 1 x Cummins 105 kva
1 x Cummins 61 kva
Generators in kW Starboard 61 Port 105
Generator Hours Starboard 8800 (Feb 2015) Port 800 (Feb 2015)

AUDIO VISUAL
1 x Pioneer 42 inch plasma screen with hi-fi surround sound system
2 x 20 inch LCD televisions
4 x DVD players
1 x video player

SAFETY & SECURITY
Safety 2 x 20 man DSB SOLAS approved life rafts (Pack A – deep water)
1 x Rescue Boat
1 x DSB RIB with Yanmar 27 hp diesel outboard engine and SOLAS
emergency pack
Full complement of thermal suits and life vests (NSI approved)
Full complement of medical equipment (NSI approved)
Fire Fighting TYCO FM200 System in Engine Room
2 x sets of breathing apparatus and fire suits
Portable powder and CO. extinguishers according to class throughout
Alarms Minerva Marine T1008 Fire alarm with smoke and heat sensors
throughout
Marble MS 2080 Bridge Watch bilge and technical alarm system
Security 4 x Orlaco CCTV Cameras / Quadra option
5 x Ship’s Safes in guest cabins
1 x Ship’s Safe in Captain’s cabin

COMMUNICATION EQUIPMENT
2 x Furuno VHF radiotelephones type FW-8500
2 x SRH 50 hand held VHF radiotelephones with SRH TC50 charging units
1 x Sailor VHF radiotelephone type C4951 WP situated on the Bridge Roof
Furuno SSB Transceiver type FS-1562-15
2 x Trimble Inmarsat C satellite receivers
Up to date system to be fitted
UHF Radiotelephones: Furuno DSC Receiver type DSC-60
Other: Stento/Racal batteryless emergency telephone system.
Furuno AIS 150, Siemens DEC phones intercom

NAVIGATION EQUIPMENT
Magnetic Compass: Heath magnetic compass with Mk VII binnacle and repeater
Gyrocompass: C-Plath gyro compass type Navigat X MK1 MOD10 with repeaters
Automatic Pilot: C-Plath automatic pilot type Navipilot V
Log: Furuno doppler log type DS-80
Echo Sounder: Furuno echo sounder type FCV582L
Radar: Furuno FR1510 Mk 3 radar
GPS: Furuno GPS type Navigator GP-80
Chart Plotter: Transas electronic chart plotter displayed on 2 x AOC 21inch LCD screens
Weather Fax: QDR 2000 weather chart receiver
Navtex: Furuno NX-500 Navtex
Wind Instruments: Gill Ultrasonic wind instruments

OFFICE EQUIPMENT
Fujitsu/Siemens PC with Hewlett Packard Faxjet colour copier and fax, internet, email and Skype

DECK EQUIPMENT
Deck Equipment 1 x 20kN Maaskant hydraulic windlass with 2 bronze warping heads
1 x 20kN electric aft capstan with a bronze warping head
Ground Tackle Anchors: 2 x 430kg HHP Pool type anchors
Chains: 5 shackles (450.00ft/137.15m) port and 6 shackles
(540.00ft/164.58m) starboard of 20.5mm stud linked galvanised anchor
chain type U2
Cranes/Davits/Passerelles 1 x Global davit tender crane with a safe working load of 2500kg
1 x Global davit tender crane with a safe working load of 1200kg
1 x Telescopic store crane (foredeck) safe working load of 500kg
Port and starboard sides midships boat boom
1 x 4.10 meter Mediterranean style teak/stainless steel passerelle
Side Accommodation Ladder on Starboardside

TENDERS & SPORT EQUIPMENT
Tenders 1 x DSB 4.3 SR RIB rescue boat with 27 hp Yanmar diesel outboard engine
1 x Buster M 4.6m aluminium with 36 hp Yanmar diesel outboard engine
1 x Buster XL 5.6m aluminium with 115 hp Yanmar 4-stroke petrol
outboard engine
Sailing 2 x Walker Bay 10 ft sailing/rowing dinghy with inflatable hypalon tube

DOMESTIC EQUIPMENT
Galley 1 x Miele ceramic cooking range – type KM400
1 x Miele gas range – type KM 404
1 x Miele gas range – type KM 406
1 x Siemens oven – type HB 90054
1 x Quooker Pro 3 waterboiler 1.6 kw
1 x Miele refrigerator/freezer – type KD3524
1 x Miele refrigerator – type K622U (on bridge)
1 x Miele Steam oven – type DG 163
1 x Miele Professional dishwasher – type G 7856
2 x Miele Freezers – type F7561S
1 x Liebherr Biofresh refrigerator – type KSB3640

CREW GALLEY:
1 x Miele Classic Steam oven – type DG163
1 x Siemens Oven – type HE25054
1 x Cooking range – type EK72054
1 x Quooker Pro 3 waterboiler 1.6 kw
1 x Miele refrigerator – type K852 I
1 x Miele Professional dishwasher type G-7856
Laundry 2 x Miele Professional washing machines type WS-5425
2 x Miele Professional dryers type T5205C
Miele Roller Iron type B890

Båten står i
Norge
Type
Yacht
Merke
Andre
Årsmodell
2004
Lengde i fot
158 fot
Lengde i cm
4 816 cm
Bredde
820 cm
Dybde
280 cm
Motor inkl.
Ja
Motormerke
Cummins NT855 14l. 6 cyl.
Motortype
Innenbords
Motorstr.
1 200 hk
Drivstoff
Diesel
Materiale
Annet
Maks fart
12 knop

See the boat advertised at finn.no in the link below:

http://www.finn.no/finn/boat/used/object?finnkode=56049289
